LED 3rd brake light - Page 2

Kayaus · 03-01-2014, 12:36 PM

How do you even go about making these? It's essentially just a brake light off an impala right? Or is it a different adapter?

sleepyalero · 03-01-2014, 01:20 PM

You need grand am housing/lense.

Impala 3rd brake light led board/wiring.

Remove stock board (3 hex screws) then either solder the wire to the brass plates on your stock board. Or just wrap wires around postive/neg brass parts. My solders wouldnt stick so I just wrapped it around. Works fine.

Then you can either silicone the board into your stock housing or just firmly push it it. I just pushed mine in and it holds snug.

Here is a look where I wrapped the wire around the stock board.

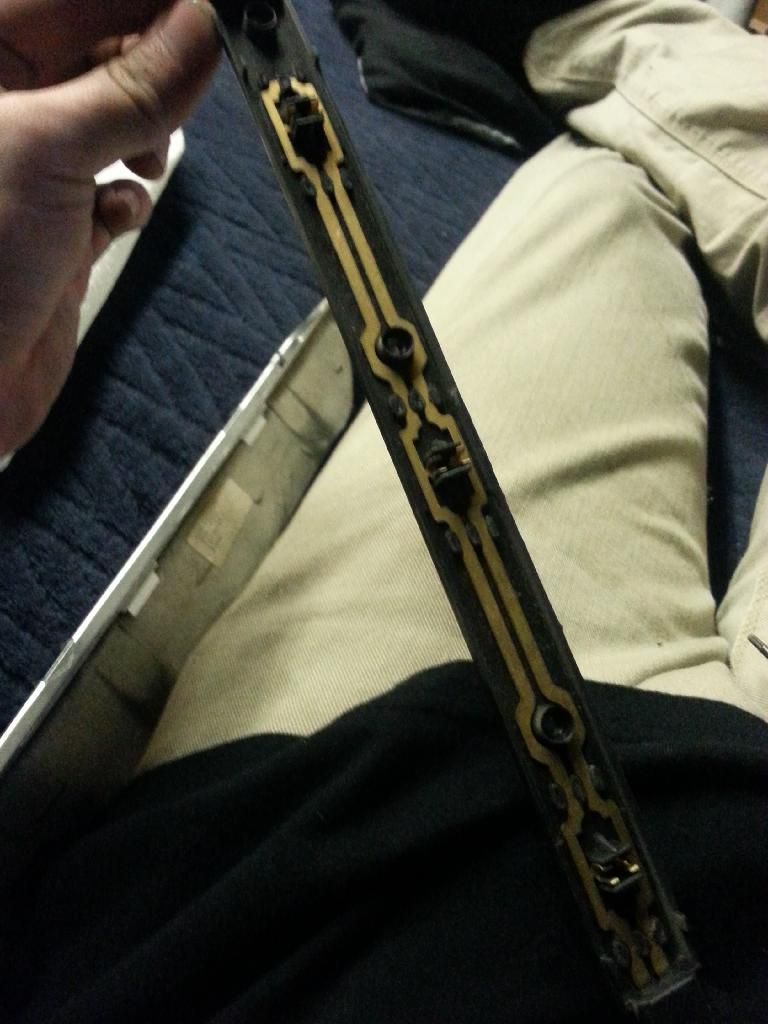

Also is a pic of the board after all taken apart. One side of the brass is postive one side is negative

Kayaus · 03-01-2014, 02:27 PM

I've gotta try this out than, thanks for the info.

ItsMeScottG · 03-01-2014, 02:33 PM

Quote:

Originally Posted by Kayaus

I've gotta try this out than, thanks for the info.

This picture is my car from a few months ago

sleepyalero · 03-01-2014, 03:07 PM

I also did not use the diffuser.

ItsMeScottG · 03-01-2014, 03:26 PM

Quote:

Originally Posted by sleepyalero

I also did not use the diffuser.

I used the diffuser on mine. I tested with it and without it and I liked how it looked better with the clear lens on it.

sleepyalero · 03-01-2014, 03:31 PM

I personally liked it without.

ItsMeScottG · 03-01-2014, 03:32 PM

Quote:

Originally Posted by sleepyalero

I personally liked it without.

They look good both ways, either way it's better than stock

Kayaus · 03-01-2014, 05:40 PM

I've got the PONTIAC overlay for it, but for some reason my center bulb always gives me grief, bulb has yet to burn out, but it stays off unless I punch the trunk lid.

sleepyalero · 03-01-2014, 07:12 PM

My 3 bulbs in the 3rd break light has lasted years. Lol

xUnderCoverHoBo · 03-01-2014, 07:52 PM

^^ cuz its never used. You would have to drive it for them to burn out

sleepyalero · 03-01-2014, 07:58 PM

Hahahaha

xUnderCoverHoBo · 03-01-2014, 07:59 PM

Insert pic of kelso saying... BURN

CJaguar265 · 02-05-2016, 05:56 PM

Do you have any more for sale ?

CJaguar265 · 02-13-2016, 05:21 AM

sleepyalero · 02-13-2016, 08:30 AM

No one ever sold any in this thread? Its about making one.

03-01-2014, 12:36 PM	#21
Kayaus Stock for Brains AKA: Joe Join Date: Dec 2009 Location: Central Islip, NY Age: 31 Posts: 430 Vehicle: 2004 Grand Am GT Coupe	How do you even go about making these? It's essentially just a brake light off an impala right? Or is it a different adapter? __________________ 2004 GAGT: TruGreens Custom LED Fogs, SC/T Spoiler, WS6 Hood, Speedbuilt STBs, Borla Cat-Back Exhaust, black / clear headlights, 17x7 ROH rims. 1990 MX-5: 15x7 RPF1s, Nitto R-Compound Slicks, FM Stage 1 Clutch, Hella E-Code headlights, R-type Sway Bar, APR aero mirrors.

03-01-2014, 01:20 PM	#22
sleepyalero ▂ ▃ ▅ ▆ █ ▆ ▅ ▃ ▂ AKA: Nathan Join Date: Jul 2011 Location: Unknown. Posts: 5,911 Vehicle: 2001 olds alero GLS	You need grand am housing/lense. Impala 3rd brake light led board/wiring. Remove stock board (3 hex screws) then either solder the wire to the brass plates on your stock board. Or just wrap wires around postive/neg brass parts. My solders wouldnt stick so I just wrapped it around. Works fine. Then you can either silicone the board into your stock housing or just firmly push it it. I just pushed mine in and it holds snug. Here is a look where I wrapped the wire around the stock board. Also is a pic of the board after all taken apart. One side of the brass is postive one side is negative __________________ 2001 \| Alero GLS \| 3400 \| 6MT 2012 BMW S1000RR, full exhaust, BRENTUNE, power commander 5, dyno tune, 198WHP.

03-01-2014, 02:27 PM	#23
Kayaus Stock for Brains AKA: Joe Join Date: Dec 2009 Location: Central Islip, NY Age: 31 Posts: 430 Vehicle: 2004 Grand Am GT Coupe	I've gotta try this out than, thanks for the info. __________________ 2004 GAGT: TruGreens Custom LED Fogs, SC/T Spoiler, WS6 Hood, Speedbuilt STBs, Borla Cat-Back Exhaust, black / clear headlights, 17x7 ROH rims. 1990 MX-5: 15x7 RPF1s, Nitto R-Compound Slicks, FM Stage 1 Clutch, Hella E-Code headlights, R-type Sway Bar, APR aero mirrors.

03-01-2014, 03:07 PM	#25
sleepyalero ▂ ▃ ▅ ▆ █ ▆ ▅ ▃ ▂ AKA: Nathan Join Date: Jul 2011 Location: Unknown. Posts: 5,911 Vehicle: 2001 olds alero GLS	I also did not use the diffuser. __________________ 2001 \| Alero GLS \| 3400 \| 6MT 2012 BMW S1000RR, full exhaust, BRENTUNE, power commander 5, dyno tune, 198WHP.

03-01-2014, 03:31 PM	#27
sleepyalero ▂ ▃ ▅ ▆ █ ▆ ▅ ▃ ▂ AKA: Nathan Join Date: Jul 2011 Location: Unknown. Posts: 5,911 Vehicle: 2001 olds alero GLS	I personally liked it without. __________________ 2001 \| Alero GLS \| 3400 \| 6MT 2012 BMW S1000RR, full exhaust, BRENTUNE, power commander 5, dyno tune, 198WHP.

03-01-2014, 05:40 PM	#29
Kayaus Stock for Brains AKA: Joe Join Date: Dec 2009 Location: Central Islip, NY Age: 31 Posts: 430 Vehicle: 2004 Grand Am GT Coupe	I've got the PONTIAC overlay for it, but for some reason my center bulb always gives me grief, bulb has yet to burn out, but it stays off unless I punch the trunk lid. __________________ 2004 GAGT: TruGreens Custom LED Fogs, SC/T Spoiler, WS6 Hood, Speedbuilt STBs, Borla Cat-Back Exhaust, black / clear headlights, 17x7 ROH rims. 1990 MX-5: 15x7 RPF1s, Nitto R-Compound Slicks, FM Stage 1 Clutch, Hella E-Code headlights, R-type Sway Bar, APR aero mirrors.

03-01-2014, 07:12 PM	#30
sleepyalero ▂ ▃ ▅ ▆ █ ▆ ▅ ▃ ▂ AKA: Nathan Join Date: Jul 2011 Location: Unknown. Posts: 5,911 Vehicle: 2001 olds alero GLS	My 3 bulbs in the 3rd break light has lasted years. Lol __________________ 2001 \| Alero GLS \| 3400 \| 6MT 2012 BMW S1000RR, full exhaust, BRENTUNE, power commander 5, dyno tune, 198WHP.

03-01-2014, 07:52 PM	#31
xUnderCoverHoBo GAGT - Member AKA: Jarrett Join Date: Jan 2012 Location: Unknown Age: 28 Posts: 1,007 Vehicle: 2012 Honda Civic	^^ cuz its never used. You would have to drive it for them to burn out __________________ Poor college student mods...

03-01-2014, 07:58 PM	#32
sleepyalero ▂ ▃ ▅ ▆ █ ▆ ▅ ▃ ▂ AKA: Nathan Join Date: Jul 2011 Location: Unknown. Posts: 5,911 Vehicle: 2001 olds alero GLS	Hahahaha __________________ 2001 \| Alero GLS \| 3400 \| 6MT 2012 BMW S1000RR, full exhaust, BRENTUNE, power commander 5, dyno tune, 198WHP.

03-01-2014, 07:59 PM	#33
xUnderCoverHoBo GAGT - Member AKA: Jarrett Join Date: Jan 2012 Location: Unknown Age: 28 Posts: 1,007 Vehicle: 2012 Honda Civic	Insert pic of kelso saying... BURN __________________ Poor college student mods...

02-05-2016, 05:56 PM	#34
CJaguar265 GAGT - Newbie AKA: Cjaguar265 Join Date: Oct 2015 Location: Revere, Mass Posts: 27 Vehicle: 2003 Grand Am GT	Do you have any more for sale ?

02-13-2016, 05:21 AM	#35
CJaguar265 GAGT - Newbie AKA: Cjaguar265 Join Date: Oct 2015 Location: Revere, Mass Posts: 27 Vehicle: 2003 Grand Am GT	Bump

02-13-2016, 08:30 AM	#36
sleepyalero ▂ ▃ ▅ ▆ █ ▆ ▅ ▃ ▂ AKA: Nathan Join Date: Jul 2011 Location: Unknown. Posts: 5,911 Vehicle: 2001 olds alero GLS	No one ever sold any in this thread? Its about making one. __________________ 2001 \| Alero GLS \| 3400 \| 6MT 2012 BMW S1000RR, full exhaust, BRENTUNE, power commander 5, dyno tune, 198WHP.
